Project Description

Project Background

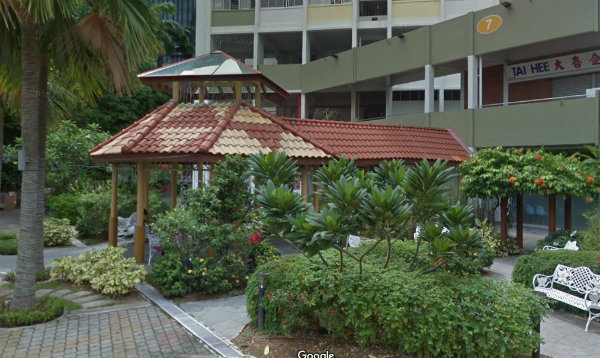

Remove a ceramic tile roof from the existing Pavilion and install a modern looking Glass Roof design for the same.

Location

Craig Road, Tanjong Pagar

Glazing Solution Provided

Used customized red powder coated 3mm thick Aluminium Cone Profile with Tinted Tempered Laminated Glass & Clear Tempered Glass.  The glass based cone structure was installed to replace the existing structure.

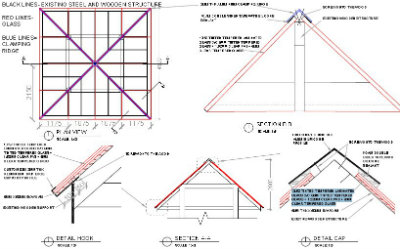

Design of Glass Roof construction

Scope of Work

Supply and installation of

  • 52 tinted laminated tempered glass c/o 6 mm tinted tempered glass
  • 52 clear PVB + 6 mm clear tempered glass c/w Eva foam
  • Structural Silicone
  • Clamping Ridge
  • Cone and Drip Edge support
  • Red powder coated angle bar in customized profile using boom lift

Time Taken

5 Days, 4 Hours

Challenges faced & Overcome

Each triangle we had split into 3 pieces instead of 2 pieces resulting in the bigger piece being 5 sided, which was hard to make perfect. Due to the structural complexity Glass requirement could not be measured very accurately, resulting in multiple templates and more time spent on glass fabrication.
